FrontMount™ 900 Series

Liquid-Cooled Diesel

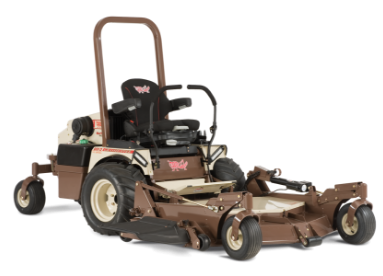

MODEL 900D 1.3L

The Grasshopper zero-turn 900D 1.3L riding lawn mower provides more power, durability and maneuverability than any mower in its class. This mower is equipped with a fuel-efficient MaxTorque™ Clean Diesel Tier 4 Final-compliant engine that burns less fuel per hour than gasoline or propane mowers. The 900D 1.3L saves landscape contractors time by powering through heavy grass at faster mowing speeds while still delivering a manicured cut thanks to the higher torque output of the diesel engine. Replace the front-mounted deck with a wide choice of grounds maintenance implements for year-round productivity. Use PowerFold® deck lift/electric height adjustment to rotate the deck up for easy cleaning and to fit more mowers on a trailer.

Request Quote Financing Videos

IMPLEMENTS

AERA-vator Coreless Aerator
Little Bully Dozer Blades
Edge-EZE Edger
Tine-Rake Dethatcher
CleanSweep Rotary Brooms
Shielded Sprayer
DriftBuster Snowthrowers
Turbine Blower
V-Plow
FrontMount PowerVac Collection Systems

*Models may be shown with optional equipment. Applicable freight, set-up and taxes not included in "Starting At" MSRP. Options and accessories extra. All prices USD and subject to change without notice. See local dealer for complete pricing and available offers.

  • Add or remove implements in minutes without tools with QuikConverter™ Implement System
  • Equip your out-front mower with a wide range of tools, including turf cleanup, renovation and snow removal implements that extend your productivity year-round

  • Fewer than 10 grease points and easy top-side access to belts and filters
  • 1,000-hour transmission fluid change intervals
  • Self-tensioning belts minimize cost and labor on routine maintenance

Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry's first electric deck lift (introduced in 2004).

PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.

The feature also adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.

  • Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
  • Dampened steering levers that return to neutral from forward and reverse
  • Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position

Electronic Fuel Gauge/ Digital Hour Meter

  • EPA Tier 4 Final-compliant 77 cu. in. (1.3L) , 3-cylinder, liquid-cooled Kubota Clean Diesel engine with horizontal crankshaft and pressure lube for smooth, reliable operation

  • Rugged G3 hydrostatic transmission with auxiliary cooling fans, HydroGear variable displacement 21cc piston-type pumps and high-torque Parker wheel motors with single serpentine belt for more efficient power transfer to the drive.
  • CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency
  • Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval

Wide stance single-fork tail wheels provide increased flotation and stability for a smoother ride.

Hydraulic Lift raises the front of the deck to maneuver over soft or uneven ground and to clear curbs, trailer ramps and other obstacles, operated by a lift switch on the steering lever.

  • Robotically-welded, high-grade steel construction and I-beam reinforcement for long-lasting durability
  • Centered-bearing design provides greater load-bearing capacity to easily handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
  • Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance

LED work lights provide improved visibility in low light situations.

Two USB Charging Ports

  • Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
  • Specially designed cutting chambers enhance airflow for better cut quality
  • Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
  • Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
  • Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
  • Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion

  • Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only.
  • Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.

  • Equipped with a High Temperature Clutch Cut-Out that automatically disengages the PTO if engine temperature reaches a certain point to prevent engine damage

  • The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
  • Operational controls including throttle, ignition and push/pull PTO switches, angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
  • One- or two handed operation with QuikAjust Tilt™ dual levers with 9-inch comfort range to custom fit operator's reach. Levers automatically return to neutral from either forward or reverse position and are less strenuous than riding mowers with steering wheels.

Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.


Type/Horsepower/Cylinders
Kubota, MaxTorque™, 3-cyl.
Displacement
77 cu. in. (1.3L)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Liquid
Fuel
Diesel - No. 2
Fuel Capacity
8 U.S. Gal (30.28 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type
DECK
DuraMax
Mulching Package #
504569(61), 504571(72)
DURAMAX® DECK SIZE
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
*
– 72" Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5 to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets. Formed double thickness hardened steel (0.269 in. 7.6% thicker than 0.25 in. (6.35 mm)) truss spindle plane and (3) Sentry™ spindles and a triple-strength upper deck, 1/2 inch thick in stress zones. Geometrically engineered design with 7 gauge skirts to withstand the brunt of commercial mowing.
BLADES (Tempered, alloy steel)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
(3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern.
BLADE DRIVE
Maintenance-free gearbox with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
6.25 in. (15.9 cm)
– 72" Deck
12.25 in. (31.1 cm)***
Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless, diesel quick heat glow plug
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.
Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension
Console-mounted Instruments
Low engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, two USB charging ports, ignition, work lights, glow plug and push/pull PTO switches.
Work Lights
Standard - LED
Hour Meter
Standard
Type
Rugged, design-matched G3 hydrostatic system with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and Parker wheel motors.
Filtration/Hydro Fluid
Integrated, replaceable, high-efficiency, fine-particle filter / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000 hour change intervals.
Speed
0 - 11.0 mph (0 - 17.7 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point.
Steering
One- or two-hand operation with adjustable, HydraSmooth™, dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
Telescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake.
MidMount
Drive Wheels - Standard (4-ply rated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Drive Wheels – Optional (4-ply rated)
NA
Front Wheels – All Models
NA
FrontMount
Drive Wheels – Standard (4-ply rated)
24x12.00x12 bar tread, high flotation, 4-ply rated
Drive Wheels – Optional (4-ply rated)
24 x 12.00-12, turf tread, 4-ply rated
24 x 12-12 Michelin® X® Tweel® airless turf tread
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
13x6.50x6 rib tread, pneumatic (2)
Deck Tires (4-ply rated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
11x4.00x5 (flat proof), 4-ply rated
– 72" Deck
13x6.50x6 rib tread, pneumatic, 4-ply rated
Height (Seat Back)
47.0 in. (119.4 cm)
Height (Seat Cushion)
31.5 in. (80.0 cm)
Height (ROPS)
69.5 in. (176.5 cm)
Length (frontmount w/ DuraMax® Deck - Mowing Position)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
112.5 in. (285.8 cm)
– 72" Deck
120.5 in. (306.1 cm)
Length (FrontMount Power Unit + DuraMax® Deck - Folded Up)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
94.0 in. (238.8 cm)
– 72" Deck
107.0 in. (271.8 cm)
Deck Width (Side Discharge)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
85.5 in. (227.3 cm)
Deck Width (Mulch*)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
73.5 in.* (186.7 cm)
FrontMount PowerUnit Only (Width/Length)
54.5 in. (138.4 cm)/70.0 in. (177.8 cm)
FrontMount Power Unit (Wheelbase)
54.5 in. (138.4 cm)
(Uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
1595 lbs. (725.5 kg)
– 72" Deck
1695 lbs. (768.8 kg)
FrontMount Power Unit Only (uncrated)
1150 lbs. (521.6 kg)
FrontMount Deck Only - Side Discharge (uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
445 lbs. (201.8 kg)
– 72" Deck
545 lbs. (247.2 kg)
Mulching Package
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
44 lbs. (20.0 kg)

All specifications and information displayed on this Web site are subject to change without notice.

Available for 61- or 72-inch deck options, heavy-duty anti-scalp rollers facilitate faster trimming and eliminate scalping.

Provides additional seating room for larger operators or to accommodate cell phones or pagers. Requires seat belt extension.

Dual-fork tail wheels or wide stance single-fork tail wheels.

Yellow beacon attaches to OPS to provide greater visibility in high-traffic areas.

Lightweight, water repellent, UV-resistant vinyl canopy mounts easily to OPS or ROPS to limit exposure to direct sunlight, reducing eye strain and increasing operator comfort.

The optional Down Discharge™ mulching package with GrassMax™ High-Low Mulching blades cuts and recuts clippings and directs them deep into the turf, enriching turf and producing a beautifully manicured cut.

Provides an additional two inches of leg clearance.

Diamond-plated aluminum canopy is highly resistant to abrasions. Mounts to ROPS or OPS to increase operator comfort by limiting exposure to direct sunlight and reducing eye strain. Canopy tilts up and down to accommodate operator’s size. Optional cooling fan and LED light kit increase operator comfort and visibility.

The optional SpeedTrimming™ heavy-duty, anti-scalp roller kit for 52-inch and larger DuraMax® decks speeds close trimming near buildings, fences retaining walls and other landscaping features. Kits available for both left and right sides of cutting decks.

Used in conjunction with PowerFold® electric deck lift/height adjustment, this armrest-mounted switch controls deck lift functions and adjusts cutting height between 1.0 and 4.5 inches on the go.

Allow for controlled side-to-side flotation of the deck in rolling terrain for a smooth, even cut.

The Foldable ROPS allows the two-post ROPS to be lowered for mowing under low-hanging trees and other overhead obstacles, or for storing and transporting in enclosed trailers with low door clearance. CAUTION: Avoid drop-offs, embankments and steep slopes. Do not allow ROPS to provide a false pretense of security in hazardous areas and avoid questionable conditions. Always wear seatbelt when Foldable ROPS is in up-right position. When Foldable ROPS is down, DO NOT use seat belt, and drive with extra caution.

Turf-tread tires provide enhanced traction and handling on level terrain. Turf-tread tires are optional for 700 and 900 Series FrontMount™ models.

Every FrontMount™ mower accepts a range of time- and labor-saving QuikConverter™ implements for even greater flexibility and productivity year-round.

Multi-channel sprayer combs water pressure between radiator fins without damage, dislodging packed-in dust and debris that can become an invisible source of engine overheating.

Engine Block Heater helps warm the engine for easier starting in cold weather.

Control the discharge of the mower deck to avoid putting clippings in flower beds and on sidewalks

Dedicated, extra deep rear-discharge decks deliver revolutionary performance for applications where keeping clippings off sidewalks, driveways and parking lots is critical.

Smooth tread, 13x6.50x6 tail wheel. Performs like a pneumatic tire, but without the inconvenience and downtime associated with flats. Also available for 72-inch deck wheels. Not for use with PowerVac Collection Systems.

Optional 24x12.00x12 turf-tread drive tire performs like a pneumatic tire but without the inconvenience and downtime associated with flat tires. Provides consistent hub height to ensure the mower deck produces an even cut and excellent lateral stability and outstanding operator comfort.

61-inch 36 Series (3661) or 72-inch 34 Series DuraMax® side-discharge decks easily convert to Down Discharge™ mulching or PowerVac™ collection. All come standard with PowerFold® electric deck lift/height adjustment.

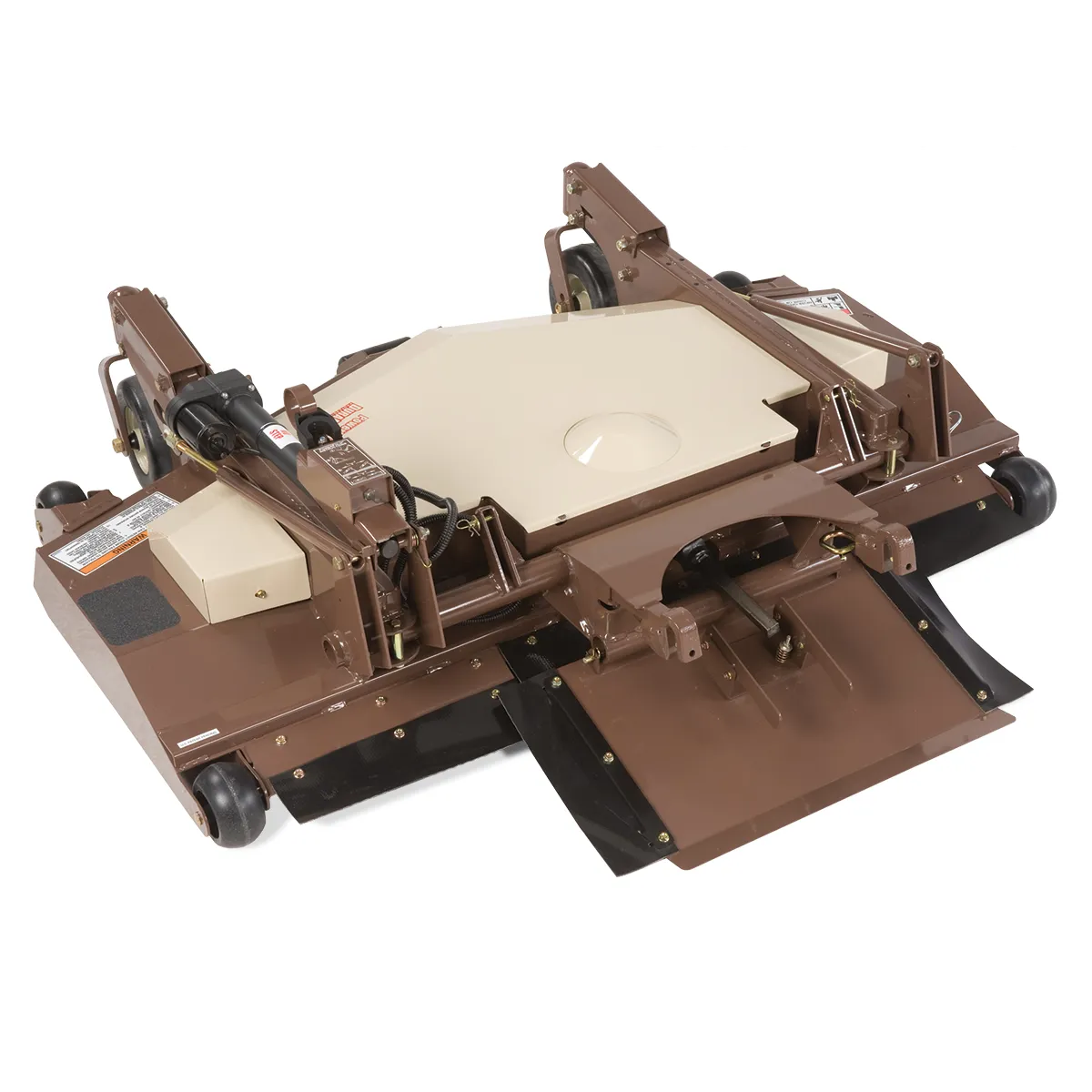

61-inch 37R Series (3761) or 72-inch 35R (3572) dedicated rear discharge decks come standard with PowerFold® electric deck lift/height adjustment.
